200-2000W光伏儲能系統(家庭、學校、商戶)
      200-2000W Solar Energy Storage System (Home, School, Merchant)

      1、適用范圍(Scope of Application)

      適用于附近沒有城市電網的無電地區的學校、機關、家庭用電(系統容量可根據用戶不同需求進行不同配置),白天利用太陽能發電,一方面為用戶提供電源,同時對儲能電池充電。晚上沒有太陽的時候,儲能電池放電來滿足用電需求。
      The system is suitable for schools ,offices and homes without city grid nearby in the no-electricity areas(The capacity of the system is determined by user’s needs).During the day, the system supplies electricity to users by transforming solar energy. At the same time, it changes the battery . In the evening, the battery is used to supply electricity.

      2、系統構成(System Components)

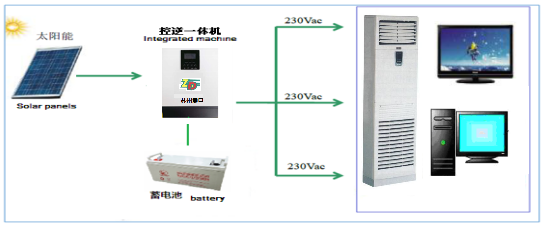

      系統由太陽能組件、控逆一體機、儲能電池和輔助配件等組成,太陽能組件負責把太陽能變成電能,控逆一體機負責對太陽能組件、儲能電池、負載等進行充放電監測、保護和控制,儲能電池負責在太陽不發電時為用戶供電。系統結構圖如下。
      The system consists of solar module, intergraded machine, storage battery , auxiliary fitting and so on. Solar panels are responsible for transforming solar energy into electric energy. Inverter is used to monitor the status of solar module, storage battery and loading , protect and control them.  The storage battery is used to supply electricity to users. The following picture is the structure of the system.

      3、系統配置(System Configuration)

      1、太陽能組件:根據用戶的用電量需求來配置太陽能組件的數量,比如需要用電200W(電燈、電風扇),則配置一塊325w太陽能板、支架、電源線若干。(一體機可接柴油機輸入)
      2、控逆一體機 : 包括充電器和逆變器二部分,容量為1KVA。
      3、儲能電池:電池容量根據晚上需要用電量和放電時間來定,比如對200W負載放電3小時,需要配置12V*65Ah免維護電池2只。
      1, solar modules: according to the user’s demand for electricity to configure the number of solar modules, such as, if the power of load is 200W (lights, fans), you should configure solar panels whose power is 325 W, stents, power lines. (Intergraded machine can be connected to diesel engine input)
      2, (Intergraded machine: it consists of inverter and MPPT solar charger ,whose capacity is 1KVA .
      3, storage battery: the capacity of the storage battery is determined by power consumption and discharge time, such as ,if the load whose power is 200w discharges for 3 hours, you should configure 2 12V*65Ah maintenance-free batteries.
      不同規格設備配置表
      Configuration Table for Different specifications of equipment
      規格(W)
      category
      配置
      configuration
      備注
      remarks
      200
      光伏組件325W*1套、電池12v65Ah*2,1kva一體機1臺
      Solar panels325w*1,batteries 12v65Ah*2、1kva integrated machine
      家用
      household
      300
      光伏組件270w*2套、12v100Ah*2節,1kva一體機1臺
      Solar panels270w*2,batteries 12v100Ah*2、1kva integrated machine
      家用
      household
      500
      光伏組件270w*3套、電池12v100Ah*3節,1kva一體機1臺
      Solar panels270w*3,batteries 12v100Ah*3、1kva integrated machine
      家用或辦公
      household&office
      1000
      光伏組件325w*5套、電池12v100Ah*6節,2kva一體機1臺
      Solar panels325w*5,batteries 12v100Ah*6、2kva integrated machine
      辦公或?qū)W校
      office&school
      1500
      光伏組件325w*7套、電池12v100Ah*9節,4kva一體機1臺
      Solar panels325w*7,batteries 12v100Ah*9、4kva integrated machine
      辦公或?qū)W校
      office&school
      2000
      光伏組件325w*12套、電池12v100Ah*12節,5kva一體機1臺
      Solar panels325w*12,batteries 12v100Ah*12、5kva integrated machine
      辦公或?qū)W校
      office&school

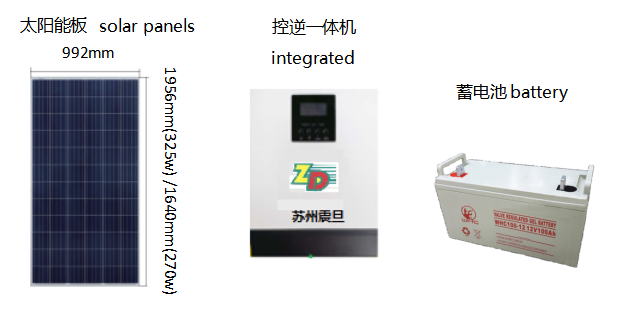

      4、部件外形及尺寸(Shape and Size of Components)
